Description
A Ring Type Joint Flange (RTJ flange) is designed a groove cut in the sealing surface of the flange. A softer steel ring gasket is placed in the groove, which creates a metal-to-metal seal when the gasket is in compression. This type of flange is designed for high-pressure and high- temperature piping applications.

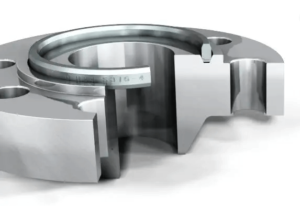

RTJ flange with a groove A soft metal insert into the groove
Ring Type Joint Flanges (RTJ flanges) are widely used in oil and gas, petrochemical, waterworks, chemical industry, plumbing, heating, power plant, paper & pulp industry, fabrication industry, food processing industry, etc.
Founded in 2000, Zhongnuo focus on the manufacture of forged flanges, including carbon steel flanges and stainless steel flanges. The flanges we supply have perfect appearance, accurate dimensions, excellent performance, and durable in use. We are also an ISO certified flange manufacturer, which can meet the demanding quality requirements of our customers’. Thanks to our strict quality control and professional services, it enables us to maintain mutual benefit cooperation with our customers.
Specification
Dimensions of Ring Type Joint Flange:
ASME/ANSI: DN 1/2” – DN 24”
DIN: DN 6 – DN 100
EN1092: DN 10- DN 600
JIS: 15A-1500A
UNI: DN 10 – DN 600
Pressure of Ring Type Joint Flange:
ASME/ANSI: Class 150, 300, 600, 900, 1500 2500lbs
DIN: DIN2561, DIN2566
EN1092: PN6, PN10, PN16, PN25, PN40, PN64, PN100
1K,2K,5K,10K,16K,20K,30K,40K
UNI: PN6, PN10, PN16, PN25, PN40
Material of Ring Type Joint Flange:
Carbon steel RTJ flanges: A105, SS400, SF440 RST37.2, S235JRG2, P250GH, C22.8, etc.
Stainless Steel RTJ flanges: ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Ring Type Joint Flange Available Types
| Ring Type Joint Flange | RTJ flange |
|---|---|
| Steel Ring Type Joint Flange Flanges | Ring Type Joint Flange Dimensions |
| B.S. 2392 Ring Type Joint Flange | Slip on Flange Ring Joint Type |
| Forged Flange Manufacturer | RTJ Flange Dimensions |
| Carbon Steel Flanges Manufacturer | weld neck ring joint flange |
| Steel Flange Manufacturer | Blind Ring Joint Flange |
| ANSI b16.47 Threaded Flange | ring type joint (rtj) flange |
| DIN Flange Manufacturer | blind flange ring type joint |
Datasheet
Ring Type Joint Flange
CLASS 150 WELD NECK FLANGE RING JOINT TYPE
| Size | O | PCD | R | C | X | A | Y1 | Y2 | r | B1 | B2 | N | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 26 | 870.0 | 806.5 | 740.2 | 50.8 | 723.9 | 660.4 | 85.7 | 127 | 6.4 | 666.8 | To be specified by customer. | 24 | 34.9 |
| 28 | 927.1 | 863.6 | 793.8 | 52.4 | 781.1 | 711.2 | 87.3 | 128.6 | 6.4 | 717.6 | 28 | 34.9 | |
| 30 | 984.3 | 914.4 | 857.3 | 54 | 831.9 | 762 | 88.9 | 130.2 | 6.4 | 768.4 | 28 | 34.9 | |
| 32 | 1060.5 | 977.9 | 908.1 | 57.2 | 889 | 812.8 | 92.1 | 133.4 | 7.9 | 819.2 | 28 | 41.3 | |
| 34 | 1111.3 | 1028.7 | 958.9 | 58.7 | 939.8 | 863.6 | 93.7 | 134.9 | 7.9 | 870 | 32 | 41.3 | |
| 36 | 1168.4 | 1085.9 | 1022.4 | 60.3 | 997 | 914.4 | 95.3 | 136.5 | 7.9 | 920.8 | 32 | 41.3 | |
| 38 | 1238.3 | 1149.4 | 1073.2 | 60.3 | 1060.5 | 965.2 | 95.3 | 136.5 | 9.5 | 971.6 | 32 | 41.3 | |
| 40 | 1289.1 | 1200.2 | 1124 | 63.5 | 1111.3 | 1016 | 98.4 | 139.7 | 9.5 | 1022.4 | 36 | 41.3 | |
| 42 | 1346.2 | 1257.3 | 1193.8 | 66.7 | 1168.4 | 1066.8 | 101.6 | 142.9 | 9.5 | 1073.2 | 36 | 41.3 | |
| 44 | 1403.4 | 1314.5 | 1244.6 | 66.7 | 1219.2 | 1117.6 | 101.6 | 142.9 | 11.1 | 1124 | 40 | 41.3 | |
| 46 | 1454.2 | 1365.3 | 1295.4 | 68.3 | 1270 | 1168.4 | 103.2 | 144.5 | 11.1 | 1174.8 | 40 | 41.3 | |
| 48 | 1511.3 | 1422.4 | 1358.9 | 69.9 | 1327.2 | 1219.2 | 104.8 | 146.1 | 11.1 | 1225.6 | 44 | 41.3 |

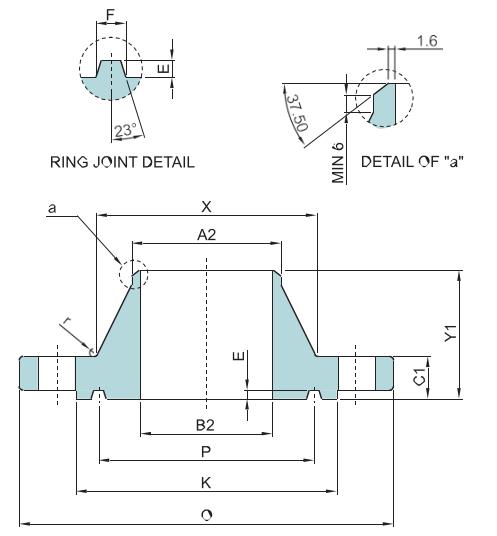

CLASS 300 WELD NECK FLANGE RING JOINT TYPE
| Size | O | PCD | R | C | C1 | X | A1 | A2 | Y | Y1 | r | B1 | B2 | N | H | P | F | E | K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 26 | 971.6 | 876.3 | 749.3 | 79.4 | 103.2 | 720.7 | 687.4 | 666.8 | 184.2 | 182.6 | 9.5 | 666.8 | To be specified by customer. | 28 | 44.5 | 749.3 | 19.8 | 12.7 | 809.6 |
| 28 | 1035.1 | 939.8 | 800.1 | 85.7 | 109.5 | 774.7 | 739.8 | 717.6 | 196.9 | 195.3 | 11.1 | 717.6 | 28 | 44.5 | 800.1 | 19.8 | 12.7 | 860.4 | |
| 30 | 1092.2 | 997 | 857.3 | 92.1 | 115.9 | 825.5 | 792.2 | 768.4 | 209.6 | 208 | 11.1 | 768.4 | 28 | 47.6 | 857.3 | 19.8 | 12.7 | 917.6 | |
| 32 | 1149.4 | 1054.1 | 914.4 | 98.4 | 125.4 | 881.1 | 844.6 | 819.2 | 222.3 | 220.7 | 11.1 | 819.2 | 28 | 50.8 | 914.4 | 23 | 14.3 | 984.3 | |
| 34 | 1206.5 | 1104.9 | 965.2 | 101.6 | 128.6 | 936.6 | 896.9 | 871.5 | 231.8 | 230.2 | 12.7 | 870 | 28 | 50.8 | 965.2 | 23 | 14.3 | 1035.1 | |
| 36 | 1270 | 1168.4 | 1022.4 | 104.8 | 131.8 | 990.6 | 949.3 | 922.3 | 241.3 | 239.7 | 12.7 | 920.8 | 32 | 54 | 1022.4 | 23 | 14.3 | 1092.2 |
