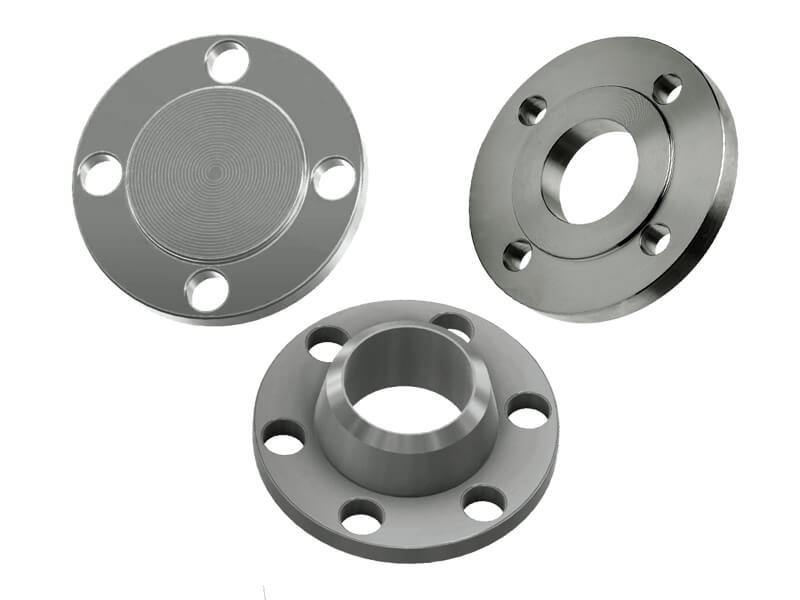

Datasheet
| DN | OD of Pipe | ID | D | Sectional Dimensions of Flange | Dia.of Bolt | Weight(kg) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| t | T | a | b | Radius r | f | Diam.of RF | C | No. of Bolt | Diam. of Hole | Bolt | SOP | BL | SOH | ||||
| 10 | 17.3 | 17.8 | 75 | 9 | - | - | - | - | 1 | 39 | 55 | 4 | 12 | M10 | 0.27 | 0.3 | - |
| 15 | 21.7 | 22.2 | 80 | 9 | - | - | - | - | 1 | 44 | 60 | 4 | 12 | M10 | 0.3 | 0.4 | - |
| 20 | 27.2 | 27.7 | 85 | 10 | - | - | - | - | 1 | 49 | 65 | 4 | 12 | M10 | 0.37 | 0.5 | - |
| 25 | 34 | 34.5 | 95 | 10 | - | - | - | - | 1 | 59 | 75 | 4 | 12 | M10 | 0.45 | 0.6 | - |
| 32 | 42.7 | 43.2 | 115 | 12 | - | - | - | - | 2 | 70 | 90 | 4 | 15 | M12 | 0.78 | 0.9 | - |
| 40 | 48.6 | 49.1 | 120 | 12 | - | - | - | - | 2 | 75 | 95 | 4 | 15 | M12 | 0.83 | 1 | - |
| 50 | 60.5 | 61.1 | 130 | 14 | - | - | - | - | 2 | 85 | 105 | 4 | 15 | M12 | 1.07 | 1.4 | - |
| 65 | 76.3 | 77.1 | 155 | 14 | - | - | - | - | 2 | 110 | 130 | 4 | 15 | M12 | 1.49 | 2 | - |
| 80 | 89.1 | 90 | 180 | 14 | - | - | - | - | 2 | 121 | 145 | 4 | 19 | M16 | 1.99 | 2.7 | - |
| 90 | 101.6 | 102.6 | 190 | 14 | - | - | - | - | 2 | 131 | 155 | 4 | 19 | M16 | 2.09 | 3 | - |
| 100 | 114.3 | 115.4 | 200 | 16 | - | - | - | - | 2 | 141 | 165 | 8 | 19 | M16 | 2.39 | 3.7 | - |
| 125 | 139.8 | 141.2 | 235 | 16 | - | - | - | - | 2 | 176 | 200 | 8 | 19 | M16 | 3.23 | 5.2 | - |
| 150 | 165.2 | 166.6 | 265 | 18 | - | - | - | - | 2 | 206 | 230 | 8 | 19 | M16 | 4.41 | 7.5 | - |
| 175 | 190.7 | 192.1 | 300 | 18 | - | - | - | - | 2 | 232 | 260 | 8 | 23 | M20 | 5.51 | 9.5 | - |
| 200 | 216.3 | 218 | 320 | 20 | - | - | - | - | 2 | 252 | 280 | 8 | 23 | M20 | 6.33 | 12.2 | - |
| 225 | 241.8 | 243.7 | 345 | 20 | - | - | - | - | 2 | 277 | 305 | 12 | 23 | M20 | 6.64 | 14 | - |
| 250 | 267.4 | 269.5 | 385 | 22 | - | - | - | - | 2 | 317 | 345 | 12 | 23 | M20 | 9.45 | 19.3 | - |
| 300 | 318.5 | 321 | 430 | 22 | - | - | - | - | 3 | 360 | 390 | 12 | 23 | M20 | 10.3 | 24.3 | - |
| 350 | 355.6 | 358.1 | 480 | 24 | - | - | - | - | 3 | 403 | 435 | 12 | 25 | M22 | 14 | 33.2 | - |
| 400 | 406.4 | 409 | 540 | 24 | - | - | - | - | 3 | 463 | 495 | 16 | 25 | M22 | 16.9 | 41.9 | - |
| 450 | 457.2 | 460 | 605 | 24 | 40 | 495 | 500 | 5 | 3 | 523 | 555 | 16 | 25 | M22 | _21.6 | 53 | 24.8 |
| 500 | 508 | 511 | 655 | 24 | 40 | 546 | 552 | 5 | 3 | 573 | 605 | 20 | 25 | M22 | 23.1 | 61.9 | 26.9 |
| 550 | 558.8 | 562 | 720 | 26 | 42 | 597 | 603 | 5 | 3 | 630 | 665 | 20 | 27 | M24 | 30.3 | 81.2 | 34.1 |
| 600 | 609.6 | 613 | 770 | 26 | 44 | 648 | 654 | 5 | 3 | 680 | 715 | 20 | 27 | M24 | 32.7 | 93.2 | 37.5 |
| 650 | 660.4 | 664 | 825 | 26 | 48 | 702 | 708 | 5 | 3 | 735 | 770 | 24 | 27 | M24 | 35.9 | 106.9 | 42.8 |
| 700 | 711.2 | 715 | 875 | 26 | 48 | 751 | 758 | 5 | 3 | 785 | 820 | 24 | 27 | M24 | 38.2 | 120.6 | 45.4 |
| 750 | 762 | 766 | 945 | 28 | 52 | 802 | 810 | 5 | 3 | 840 | 880 | 24 | 33 | M30 | 48.7 | 150.5 | _57.4 |
| 800 | 812.8 | 817 | 995 | 28 | 52 | 854 | 862 | 5 | 3 | 890 | 930 | 24 | 33 | M30 | 51.2 | 167.4 | 60.8 |
| -850 | 863.6 | 868 | 1045 | 28 | 54 | 904 | 912 | 5 | 3 | 940 | 980 | 24 | 33 | M30 | 54.4 | 185.1 | 63.5 |
| 900 | 914.4 | 919 | 1095 | 30 | 56 | 956 | 964 | 5 | 3 | 990 | 1030 | 24 | 33 | M30 | 61.1 | 218.1 | 75.3 |
| 1000 | 1016 | 1021 | 1195 | 32 | 60 | 1058 | 1066 | 5 | 3 | 1090 | 1130 | 28 | 33 | M30 | 70.5 | 277.3 | 88.5 |
| *(1100) | 1117.6 | 1123 | 1305 | 32 | 60 | - | - | - | 3 | 1200 | 1240 | 28 | 33 | M30 | 81.7 | 331.9 | - |
| *1200 | 1219.2 | 1225 | 1420 | 34 | 60 | - | - | - | 3 | 1305 | 1350 | 32 | 33 | M30 | 102 | 417.8 | - |
| *1350 | 1371.6 | - | 1575 | 34 | - | - | - | - | 3 | 1460 | 1505 | 32 | 33 | M30 | 115.9 | 515.6 | - |
| *1500 | 1524 | - | 1730 | 36 | - | - | - | - | 3 | 1615 | 1660 | 36 | 33 | M30 | 157.4 | 659.2 | - |
