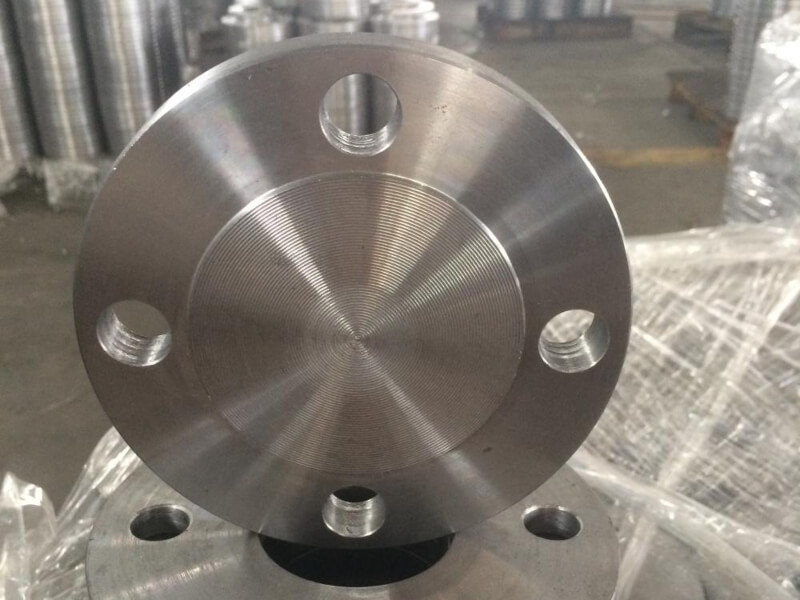

A blind flange is a solid flange with bolt hole. It is used to close the end of pipe or equipment. Blind pipe flange is also used as a manhole cover in the vessel. Blind flanges typically have a raised or flat surface.
Shandong ZhongNuo Heavy Industry Co., Ltd. е солиден производител, доставчик, най-набитите стоманени фланци в Китай. Ние можем да произвеждаме висококачествени глухи фланци в съответствие с международните стандарти, като фланци ASME/ANSI B16.5, фланци ASME/ANSI B16.47, фланци JIS, фланци DIN, фланци EN 1092-1, фланци AWWA, фланци BS 4504, SABS / ASNA 1123 фланци и т.н. Ние сме сертифицирана фабрика по ISO, KR, KS и PED/AD 2000 и можем да отговорим на взискателните изисквания на най-критичните индустрии.
Спецификация
Dimensions of carbon steel blind flanges:
ASME/ANSI: DN 1/2" – DN 24"
DIN: DN 15 – DN 2000
EN1092: DN 15 – DN 2000
JIS: 15A-1500A
UNI: DN 10 – DN 2000
SABS: DN 10-DN 600
GOST: DN 10 – DN 1600
Pressure of carbon steel blind flanges:
ASME/ANSI: Клас 150, 300, 600, 900, 1500 2500lbs
DIN: DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631,
DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
EN1092: PN6, PN10, PN16, PN25, PN40, PN64, PN100
САМО: 1K,2K,5K,10K,16K,20K,30K,40K
UNI: PN6, PN10, PN16, PN25, PN40
SABS: 600KPA,1000,1600,2500,4000
ГОСТ: PN6, PN10, PN16, PN25
Material of steel blind flanges:
Carbon steel blind flanges: A105, SS400, SF440 RST37.2, S235JRG2, P250GH, C22.8, etc.
Stainless Steel blind flanges: ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Blind Flanges Available Types
| Raised face slip-on flange | Slip on raised flange |
|---|---|
| ANSI B16.5 Blind Flanges | Blind Flange Dimensions |
| ASME B16.5 Blind Flange | Blind Flange Weight |
| Производител на ковани фланци | ANSI B16.5 Class 150 Blind Flanges |
| Производител на фланци от въглеродна стомана | CS Blind Flange |
| Blind Flange Manufacturer | DIN Blind Flanges |
| ANSI b16.47 Blind Flange | BS 4504 Blind Flange |
| Производител на DIN фланец | EN 1092-1 Blind Flange |
| ASA Blind Flange | JIS Blind Flange |
| AWWA Blind Flange | Carbon Steel Blind Flange |
Лист с данни

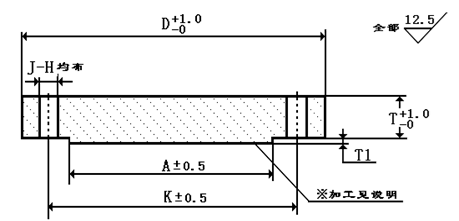

ASME B16.5 Class 150# Blind Flange with raised face surface
| Pipe | Flange | Raised Face | Drilling Template | |||||
|---|---|---|---|---|---|---|---|---|
| Ordinance Inch mm | д | T | А | T1 | J—H | К | ||
| 1/2" | 15 | 95 | 14.5 | 34.9 | 1.6 | 4 | 16 | 66.7 |
| 3/4" | 20 | 117 | 16 | 42.9 | 1.6 | 4 | 20 | 82.5 |
| 1" | 25 | 124 | 17.5 | 50.8 | 1.6 | 4 | 20 | 88.9 |
| 1-1/4" | 32 | 133 | 19.5 | 63.5 | 1.6 | 4 | 20 | 98.4 |
| 1-1/2" | 40 | 156 | 21 | 73 | 1.6 | 4 | 23 | 114.3 |
| 2" | 50 | 165 | 22.5 | 92.1 | 1.6 | 8 | 20 | 127 |
| 2-1/2" | 65 | 191 | 25.5 | 104.8 | 1.6 | 8 | 23 | 149.2 |
| 3" | 80 | 210 | 29 | 127 | 1.6 | 8 | 23 | 168.3 |
| 4" | 100 | 254 | 32 | 157.2 | 1.6 | 8 | 23 | 200 |
| 5" | 125 | 279 | 35 | 185.7 | 1.6 | 8 | 23 | 235 |
| 6" | 150 | 318 | 37 | 216 | 1.6 | 12 | 23 | 270 |
| 8" | 200 | 381 | 41.5 | 270 | 1.6 | 12 | 26 | 330.2 |
| 10" | 250 | 445 | 48 | 323.8 | 1.6 | 16 | 29 | 387.3 |
| 12" | 300 | 520 | 51 | 381 | 1.6 | 16 | 32 | 450.8 |
| 14" | 350 | 585 | 54 | 412.8 | 1.6 | 20 | 32 | 514.3 |
| 16" | 400 | 650 | 57.5 | 470 | 1.6 | 20 | 35 | 571.5 |
| 18" | 450 | 710 | 60.5 | 533.4 | 1.6 | 24 | 35 | 628.6 |
| 20" | 500 | 775 | 63.5 | 584.2 | 1.6 | 24 | 35 | 685.8 |
| 24" | 600 | 915 | 70 | 692.2 | 1.6 | 24 | 42 | 812.8 |
Applications
Blind flanges is widely used in oil and gas, petrochemical, waterworks, chemical industry, plumbing, heating, power plant, paper & целулозна промишленост, производствена промишленост, хранително-вкусова промишленост и др.
